Variable Frequency Converter

Publication time : 2018-6-25 14:50:59　

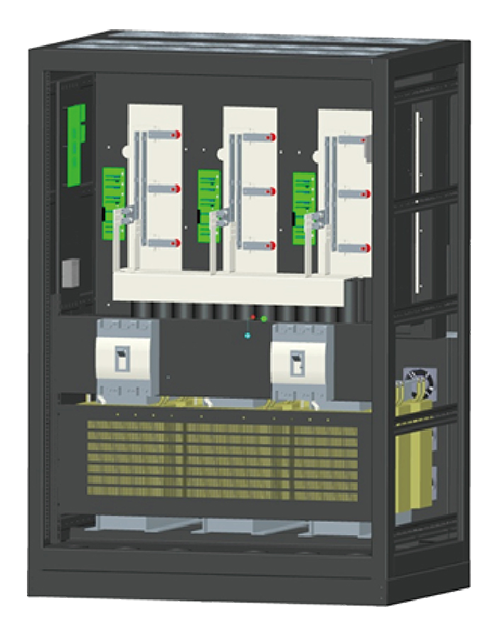

The CFP Change Frequency Power Supply is the new generation 32 bit processor of ARM, which is used by Nooyi as the core. IGBT is the executive component, and the isolation transformer is designed for voltage conversion.

It uses the AC-DC-AC (AC - DC - AC) mode to convert the input power into any power supply in the world through the SPWM (sinusoidal pulse width modulation) transformation to meet the needs of different voltages and frequencies.

Features
Parameters
Specification
Application

Product features

ARM-32 bit microprocessor control is reliable, stable and intelligent;
The dynamic response and the speed of stability are fast;
Three phase vector control, three-phase voltage automatic balance;
High precision;
The frequency is high;
7 Inch Touch screen display and control, beautiful interface, multi parameter display;
VF working curve, specially designed for motor test, has the function of soft start of inverter, and has pure sine wave of frequency conversion power supply;
RS232 communication interface, standard MODBUS-RTU protocol, optional TCP/IP interface, remote viewing and control through mobile phone APP.

Optional Features

The RS232 interface of programmable frequency conversion power supply has PC or PLC monitoring interface. It has a standard RS232 interface (which can be converted to RS485/CAN/RJ45) to meet the MODBUS-RTU protocol and facilitate remote monitoring. You can set the working group to store several groups of voltage, frequency, working time, etc.

The DC28V interface of military medium frequency power supply has DC28V DC input interface and control switch, and the DC28V power supply can be embedded inside the cabinet to form a whole, convenient, beautiful and reasonable.

Input harmonic current suppressor, 12 pulse wave rectifier, 18 pulse rectifier and 3-21 harmonic filter, reduce the input harmonic current of the frequency conversion power supply, improve the power factor, avoid the interference of the frequency conversion power supply to the other equipment in the network.

The protection grade of marine electric power supply, optional outdoor IP65 protection grade shell, direct outdoor use, is the marine power supply; also can choose the container type power supply room, the power supply in the container, the installation of the environment temperature control equipment, insulation layer and so on;

Wide range input function, optional voltage input range + 50%, frequency input 25Hz-100Hz, especially suitable for small or small hydro power generation occasions. The output can be stable frequency and steady pressure.

Input parameters

Name	Idex	Remarks
Rated voltage	Three phase 380V/400V (can be customized for any voltage) Single phase 220V/230V (can be customized for any voltage)	Three phase three wire (L1, L2, L3) + ground wire (PE) Single phase two line (L, N) + ground line (PE)
Input voltage range	±15%（other ranges can be customized）
Input frequency	40-70HZ

Output parameters

Name	Idex	Remarks
Modulation mode	IGBT/SPWM
Output voltage	Three phase 0-520V adjustable, single-phase 0-300V adjustable (customizable higher voltage)
Output voltage stability (average)	±1%（Customizable higher precision）
Reaction time	2mS（For input voltage）
Voltage waveform distortion THD	< 2%（Linear load）
Output frequency	41Hz-73Hz adjustable，50/60/400Hz fixed（optional100Hz/200Hz，5-1000Hz can be customized）
Frequency stability	< 0.1%
Phase shift	When the load is three phase equilibrium or no load, it is ≤±1°; the 100% three-phase imbalance is ≤±4°
Three phase imbalances	Automatic balance of three-phase voltage
isolation transformer	△/Y

Control parameters

Name	Idex	Remarks
Main control element	The main measurement and control chip is ARM32 bit processor, and the inverter is IGBT.
Carrier frequency	4K;8K;12K;16K optional
Control voltage and current acquisition mode	Value of validity
control mode	Voltage closed loop control or current closed loop control or VF curve control.
Interface	RS232，MODBUS-RTU protocal	optional TCP/IP，GPRS

Display parameters

Name	Idex	Remarks
Display medium	7 inch touch screen or 192*64（LCD）
Display rated parameters	Input three-phase voltage and frequency; Output three phase line voltage and frequency; The average value of output line voltage; Output power factor; Output three-phase current; Output active power, apparent power
Display alarm content	Fuse break, high IGBT temperature, high transformer temperature, IGBT fault, overload, undervoltage and so on.
Rated parameter display precision	1.0 grade
Voltage parameter resolution	0.1V	Customizable higher resolution
Current parameter resolution	0.1A	Customizable higher resolution

Protection parameters

Name	Idex	Remarks
Type of protection	nput no fuse switch, output no fuse switch, electronic circuit fast detection over current, overvoltage, overload, high temperature, short circuit and automatic jump off protection and alarm
Protection mode	Cut off the output

Physical parameters

Name	Idex	Remarks
Cooling mode	Natural cooling or forced air cooling or water cooling
Protection grade	Indoor IP21; outdoor IP33 or higher level

Name composition

Three phase model specification

Model	Capactiy(kVA)	Output current (A)		Dimension W×D×H(mm)
		high voltage	low voltage
CFP13003 /CFP33003	3	4.2	8.4	350×650×670 (with wheels)

CFP13006 /CFP33006	6	8.4	16.8

CFP13010/CFP33010	10	15	30

CFP13015/CFP33015	15	23	46	460×700×1170 (with wheels)

CFP13020 /CFP33020	20	30	60

CFP33030	30	45	90
CFP33045	45	68	136	780×650×1450
CFP33060	60	91	182
CFP33075	75	114	228	950×700×1600
CFP33090	90	137	274
CFP33120	120	183	366
CFP33150	150	228	456	1200×750×1800
CFP33200	200	304	608
CFP33250	250	380	760	1400×800×2000
CFP33300	300	456	912
CFP33350	350	532	1064	1500×1050×2200
CFP33400	400	608	1216
CFP33500	500	760	1520	2400×1200×2200
CFP33600	600	912	1824
CFP33800	800	1216	2432	1500×1050×2200两柜
CFP331000	1000	1520	3040	1500×1050×2200三柜
CFP331200	1200	1823	3646

Note:
1. 90kVA and below are equipped with high and low voltage switching switches, the high voltage and low voltage files over 90kVA are selected for order.
2. the current in the table is calculated on the line voltage 380V, the actual use should be based on the highest voltage of the selected equipment to calculate the current;
3. Parallel machine can be selected and output switch cabinet according to the needs.

Single phase model specification

Model	Capactiy(kVA)	Output current (A)		Dimension W×D×H(mm)
Model	Capactiy(kVA)	high voltage	low voltage	Dimension W×D×H(mm)
CFP11--500W	0.5	4.2	2.1	425×436×173 （rack mount）
CFP11001	1	4.2	8.4	425×436×173 （rack mount）
CFP11002	2	8.5	17	350×650×670 (with wheels)
CFP11003	3	13	26
CFP11005	5	21	42
CFP11010 /CFP31010	10	42	84
CFP11015 /CFP31015	15	63	126	460×700×1170 (with wheels)
CFP11020/CFP31020	20	84	168
CFP11030 /CFP31030	30	126	252
CFP11045 /CFP31045	45	189	378	780×650×1450
CFP31060	60	252	504	780×650×1450
CFP31075	75	315	630	950×700×1600
CFP31090	90	378	756	950×700×1600
CFP31120	120	504	1008	1200×750×1800
CFP31150	150	630	1260	1200×750×1800
CFP31200	200	840	1680	1400×800×2000
CFP31300	300	1350	2700	1400×800×2000

Note:
1. 90kVA and below are equipped with high and low voltage switching switches, the high voltage and low voltage files over 90kVA are selected for order.
2. The current in the table is calculated on the line voltage 220V, the actual use should be based on the highest voltage of the selected equipment to calculate the current;

Note: upgrading of products may lag behind, and the technical information is for reference only.

Test of export equipment; frequency conversion of imported equipment; stable frequency and steady pressure of ship; test of energy consumption environment in laboratory; place to change frequency, stable frequency and stable voltage, etc.
