| Dynamic Voltage Restorer
|

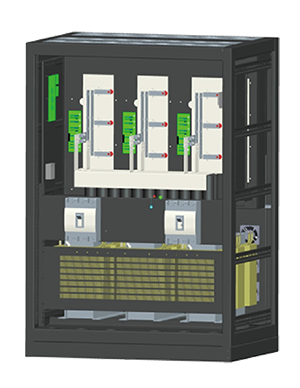

DVR Dynamic Voltage Restorer is a high technology multipurpose power supply, which uses the new generation 32 bit processor of ARM as the core, the IGBT module is the executive component, and the isolation transformer is used as the isolating filter element.

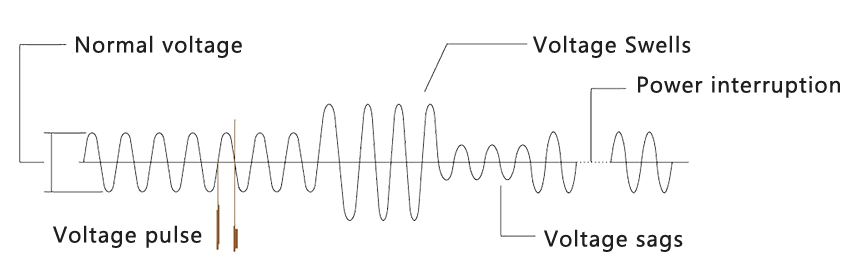

DVR Dynamic Voltage Restorer mainly solves the voltage interruption and voltage drop of the grid voltage. Compared with UPS, it has the advantages of no battery and no maintenance. |
|
 Using AC-DC-AC inverter, the output power is pure sine wave.  The input and output are completely isolated and are not disturbed by input power grid harmonics. Dynamic response and stable speed, input voltage fluctuation stability speed 2ms. Electrolytic capacitor or super capacitor energy storage, no battery free maintenance. To solve short time power interruption and drop. The three phase lack of one phase can work normally for a long time. It has the function of automatic correcting output phase sequence, which is especially suitable for two power supply without considering the phase sequence of standby power supply. LCD touch-screen parameters display, simple and easy to understand. RS232 communication interface, standard MODBUS-RTU protocol, optional TCP/IP interface, remote viewing and control through mobile phone APP. Input parameters | Name | Index
| Remarks
|
Rated voltage
|
Three phase 380V/400V (can be customized for any voltage)
Single phase 220V/230V (can be customized for any voltage) | hree phase three wire (L1, L2, L3) + ground wire (PE)
Single phase two line (L, N) + ground line (PE)
Optional two power supply input module at the same time, input two power supply to switch at any time, ensure no interruption output. | The normal working range of input | ±20% | | Short drop range | Input can completely interrupt 2 cycles to ensure normal output. | Optional extended fall time |
Input phase lose
| It can ensure normal output when input phase is absent, and can work continuously for a long time when the two phase power supply is large enough. | | Input frequency
| 40-70HZ | | Isolated transformer | △/Y | | Dual power input function | ATS dual power input function, with oil start interface. | Option, non-standard | Efficiency | >80% | |
Output parameters | Name | Index
| Remarks
|
Output center voltage | Three phase 380V/400V (+ 7% can be set)
Single phase 220V/230V (+ 7% can be set) | Three phase four wire (L1, L2, L3, N) + ground wire (PE)
Single phase two line (L, N) + ground line (PE) | Output voltage precision | <±2% | | Output voltage harmonics | <3% | | Three phase equilibrium | Automatic balance of three-phase voltage | | Load property
| Any load | | Overload capacity | 120%10 minutes, 150%1 minutes | | Bypass | manual bypass | |
Control parameters | Name | Index
| Remarks
|
Main control element |
The main measurement and control chip is ARM32 bit processor, and the IGBT module is used for the inverter.
| | Control of sampling rate | ＞8K/S | | Response compensation speed | <2ms | The fluctuation of input voltage | Control mode | Voltage closed loop control | | Interface | RS232，MODBUS-RTU protocal | TCP/IP，GPRS can be selected
|
Display parameters | Name | Index
| Remarks
| Display medium | 7 inch touch screen
| |
Display rated parameters
| Input voltage, output voltage, output current, frequency, power, load factor, power factor, etc. | |
Display alarm content | Fuse break, output overvoltage, output undervoltage, output overload, phase missing, surge protection module failure, IGBT module failure, temperature too high. | | Rated parameter display precision | 1.0 grade | | Voltage parameter resolution | 0.1V | Higher resolution can be customized | Current parameter resolution | 0.1A | Higher resolution can be customized |
Protection parameters | Name | Index
| Remarks
|
Protective species | Fuse break, output overvoltage, output undervoltage, output overload, phase missing, surge protection module failure, IGBT module failure, temperature too high. | | Protection mode | Output cutoff
| |
Physical parameters | Name | Index
| Remarks
| Heat dissipation mode | Temperature controlled forced air cooling | | Protection grade | Indoor IP21; outdoor IP33 or higher level | |

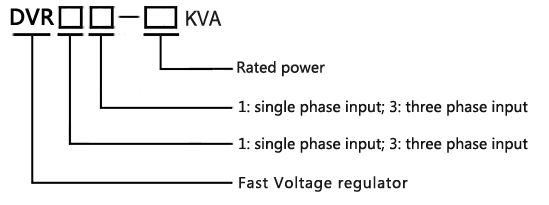

Name composition
 |  |
Three phase model
| Model | Rated current（A） | Voltage parameters | Dimension W*D*H | Remarks
| DVR33010KVA | 15 | Rated voltage:
Three phase four line + ground wire（L1+L2+L3+N+PE）
380V/400V; | 600*900*1200mm | | DVR33020KVA | 30 | DVR33030KVA | 46 | DVR33050KVA | 76 | 600*900*1600mm | | DVR33080KVA | 121 | 600*900*2000mm | | DVR33100KVA | 152 | DVR33150KVA | 228 | 600*900*1600mm
双柜 | | DVR33180KVA | 273 | DVR33225KVA | 342 | DVR33250KVA | 380 | 600*900*2000mm, one enclosure
1000*900*2000mm, one enclosure | | DVR33320KVA | 486 | DVR33400KVA | 608 | DVR33500KVA | 760 | 600*900*2000mm, two enclosure
1000*900*2000mm, one enclosure | | DVR33600KVA | 912 | DVR33800KVA | 1216 | 600*900*2000mm, three enclosure
1200*900*2000mm, one enclosure | | DVR331000KVA | 1520 | DVR331200KVA | 1824 | 600*900*2000mm, three enclosure
1400*900*2000mm, one enclosure | | DVR331400KVA | 2127 | DVR331600KVA | 2431 | 600*900*2000mm, four enclosure
1600*900*2000mm, one enclosure | |
Single phase model
| Model | Rated current（A） | Voltage parameters | Dimension W*D*H | Remarks
| DVR11003KVA | 13.5 | input voltage：
two phase three wires（L1+N+PE）
220V/230V; | 600*500*445mm | | DVR11005KVA | 22.5 | DVR11010KVA | 45 | 600*500*850mm | | DVR11020KVA | 90 | 600*500*1200mm | | DVR11030KVA | 137 | 600*900*1200mm | | DVR11050KVA | 228 | Note: upgrading of products may lag behind, and the technical information is for reference only.
Solve the instantaneous interruption of ATS two power switching process; solve the sudden rise and fall of input power, voltage drop; solve input phase lose; solve the imbalance of input.
|
|
|
